What is the Importance of MTF?

Modulation Transfer Function or MTF is one of the most vital criteria whereby image quality is determined, and the performance of an optical system is identified. MTF optimization is particularly valuable for prolonged pictures that have cutoff regularities set by the detector pixel dimension because lower spatial regularities can be boosted at the expense of higher, unnecessary frequencies. Optical systems with MTF specs include products like cellular phone cams or electronic microscopic lens.

Spatial regularity defined

Spatial frequency is vital to all types of imaging, from digital photography to clinical imaging. If you have seen a printer do a line-pair resolution examination, that’s screening for spatial regularity. The number of line sets per millimeter is the spatial regularity: the variety of cycles per level of visual angle. Images with high spatial regularity show finer detail as well as those with reduced spatial regularity show less detail. MTF defines the Comparison of spatial regularity in a scene.

Maximizing for the best MFT

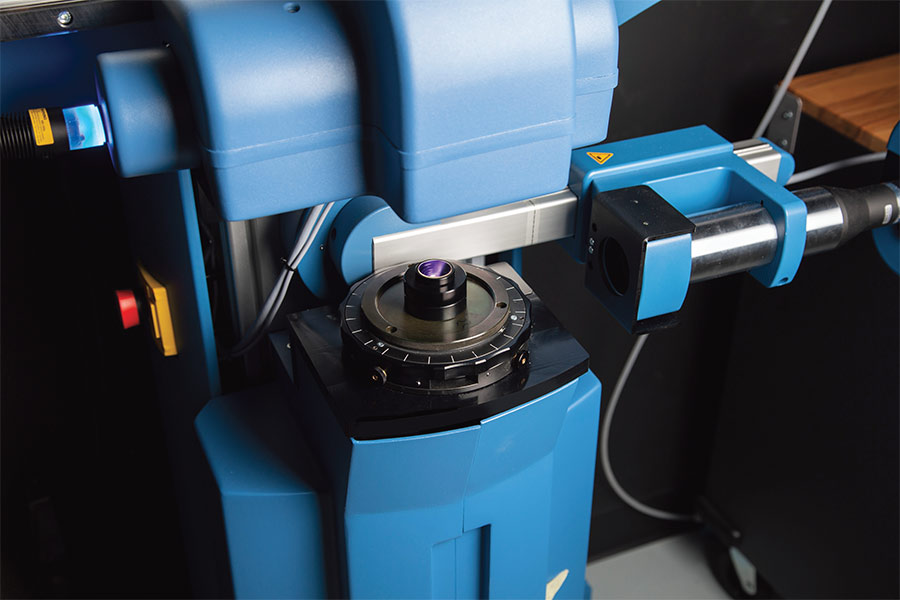

Until now, the only way to enhance for the best MTF Testing was to enhance directly on the MTF’s worth, yet this is computationally slow, costly, as well as tough to do, and also it commonly fails.

To overcome these troubles, a company established a theory of optimization known as- Contrast Optimization, which utilizes the Moore-Elliott approach to choose the best MTF action as much as an impulsive spatial frequency. The technique includes a new standard, called Comparison, of the Optimization Wizard. Constructing a Contrast value feature inhabits the software’s Benefit Feature Editor with MECS, MECA, MECT, MECX, as well as MECN operands. Contrast Optimization significantly lowers the amount of time it requires to make optical items with MTF specifications.

Benefits of the prize-winning Contrast Optimization feature include:

  • Targets every frequencies: It targets every as much as a particular cutoff frequency rather than one frequency for operant of MTF only
  • Quick calculations: It is much faster than calculating MTF straight, as quick as wavefront optimization
  • Reliability: The concept functions when MTF behaves badly because of highly aberrated beginning points
